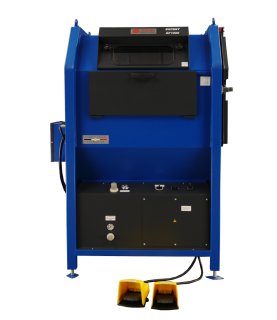

Automatic motorised turntable sandblasting cabinet

Motorised turntable for sandblasting

Special option for an industrial sandblasting or dust removal machine to be fitted and adapted by our design office to a hoop cabin for automatic sandblasting of parts on a motorized plate.

Description
Product Details

Technical description of the motorised turntable sandblasting option

This special option incorporates modifications to the machine to enable sandblasting operations to be carried out in complete safety.

To process a part with a motorised turntable, the machine must be equipped with the following in addition to the standard features:

Safety shutter with sensor for switching to manual mode
Motor and motor box outside the cab
Electric sandblasting and blowing pedals for manual mode
Timer for automatic cycle start and cycle time setting, with automatic tray stop and sandblasting at the end of the cycle time.
Sensor with door interlock

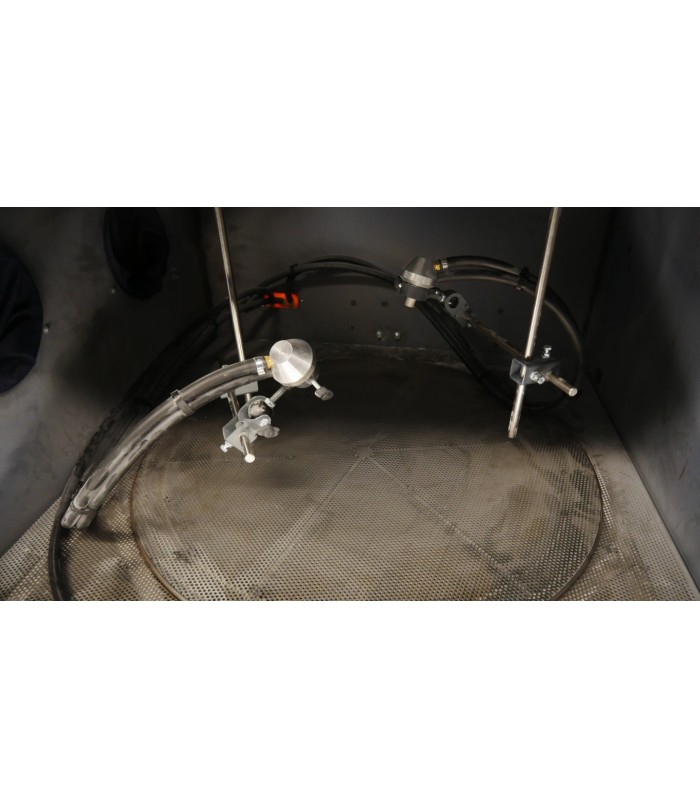

The cabinet can also be fitted with a jib for multi-nozzle support. This addition requires a vacuum abrasive projection system.

Advantages of turntable automation

A motorised rotary table can be integrated into a sandblasting cabinet to improve the productivity of the impact surface treatment operation, as well as user comfort and, ultimately, the quality of the operation through improved repeatability.

1. Homogeneous sandblasting

The motorized table allows continuous or programmed rotation of the parts during blasting. This guarantees uniform treatment on all sides, without the need for manual handling. The result is consistent, precise and professional.

2. Automation of the process

Thanks to options such as a timer or intelligent sensors, the tray can be integrated into an automatic cycle: start, blasting time, stop... All without operator intervention, which reduces errors and optimises processing times.

3. Reducing drudgery

The operator no longer needs to manually handle heavy or bulky parts during blasting. The motorised plate handles the rotation, limiting physical effort and musculoskeletal risks for operators.

4. Save time and increase productivity

Automating rotation reduces downtime and processing times. Sandblasting becomes faster and more efficient, with less handling and more parts processed per day.

5. Enhanced security

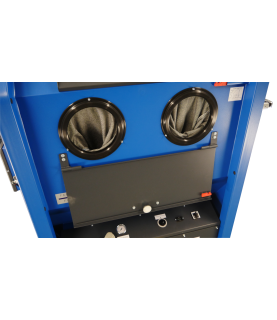

The system is coupled with safety and interlock sensors, ensuring that it is used in compliance with standards. In manual or automatic mode, the tray operates in complete safety, with total control of the cycle. A safety flap allows the handles to be obscured so that the operator's hands are not put in danger. Opening the flap immediately stops the table and the sanding process.
