Sandblasting Cabinets - ECO RANGE

Ready to sandblast professional booths

  • 100% sealed cabins with closed abrasive recycling circuit
  • Tungsten carbide blasting nozzle (300 hours of use)
  • Manual compressed air blowgun
  • Side-channel suction turbine 370 W (100 m3/h)
  • Dust filtration with 5 µm filter cartridge

Multiple settings on each machine

  • 0-8 bar blasting pressure regulator with pressure gauge
  • Machine height settings from + to - 50 mm
  • Drain and change of the abrasive in 5 minutes
  • Intuitive replacement of main wear items - Gloves, Glasses, Filters, Nozzles - without special tools

ARENA system of compact air/dust/abrasive flow management modules

Important information about the ECO range

These machines are designed for simple applications that do not generate large impurities or a lot of dust. They are not equipped with a sieve to recover large impurities, nor a cyclone to remove dust and recycle abrasive (PRO range only).

Précédent
Prochain

ECO range blast cabinets operate with a injection/succion system

Simple to use, with easy adjustment and maintenance, this system uses the Venturi effect to project the abrasive onto the surface to be treated.

Vacuum abrasive spraying is ideal for basic applications where high intensity is not required, and for treating surfaces by sandblasting or microblasting.

Précédent
Prochain

Available models

Cabine de sablage microbillage à dépression ARENA DC600
Quick view Quick View
DC 600
Cabine de sablage microbillage à dépression ARENA DC 700
Quick view Quick View
DC 700
Cabine de sablage microbillage ARENA DC1000
Quick view Quick View
DC 1000

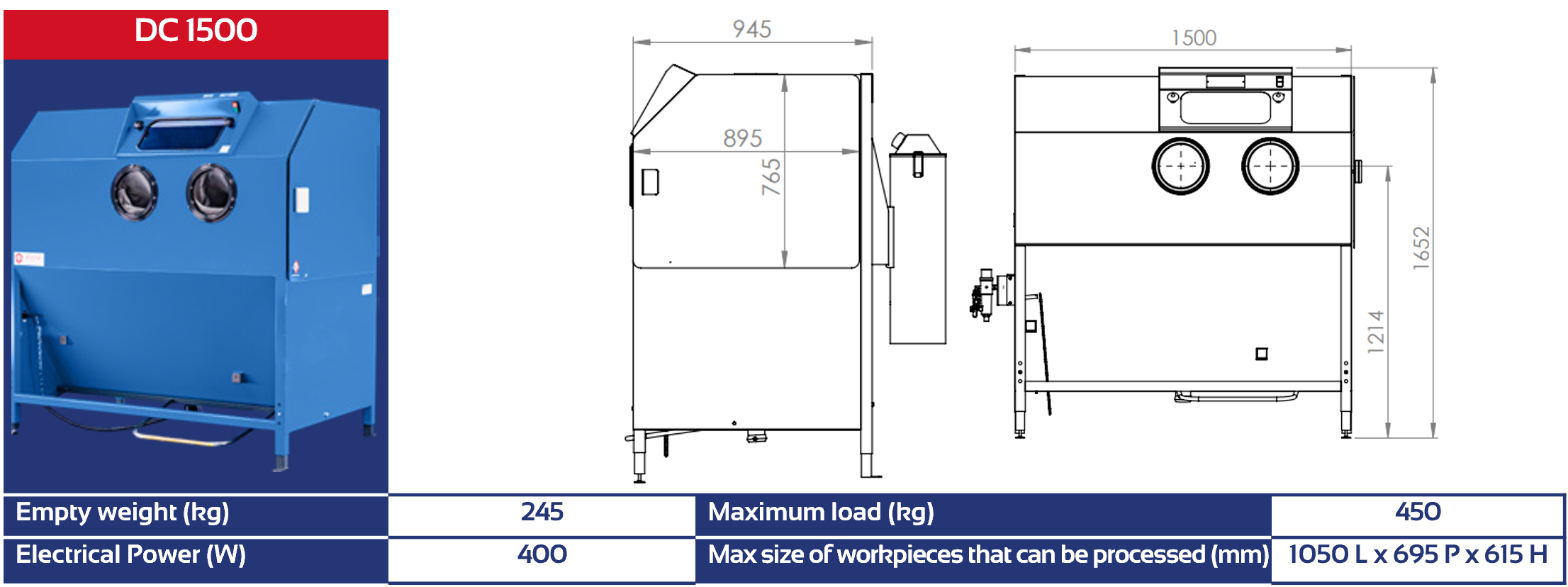

ARENA DC 1500 Cabine de Sablage et Microbillage à dépression
Quick view Quick View
DC 1500
Précédent
Prochain

Specifications

CHOOSING THE RIGHT NOZZLE DIAMETER FOR YOUR COMPRESSOR

Injection / Succion system

Minimum power of piston compressor3 ch / 2,2 kW10 ch / 7,5 kW15 ch / 11 kW
Minimum screw compressor power3 ch / 2,2 kW7,5 ch / 5,5 kW10 ch / 7,5 kW
Inside Ø nozzle5 mm6 mm 8 mm
Air consumption (for P=6 bar)12 m3/h27 m3/h

48 m3/h.

*Excluding cumulative consumption of other machines connected to your compressed air network.
To guarantee optimum machine performance, you must ensure that the correct pipe diameters are fitted throughout your installation.

Discover our other sandblasting cabinets

3DX-PERT

EXPERT RANGE

PRO RANGE

Since 1979, all our machines and equipment have been designed and manufactured in our workshop in northern France.
