PF 1515E

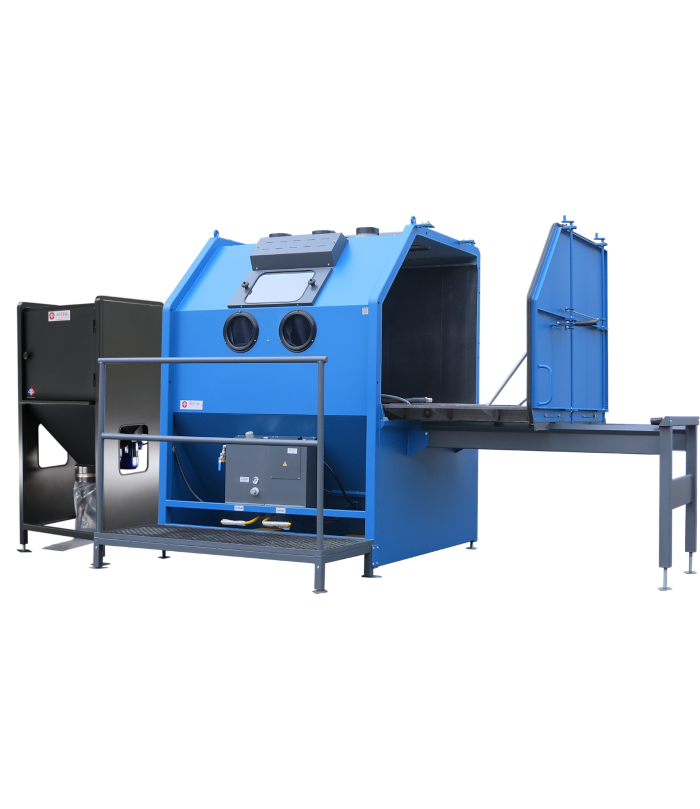

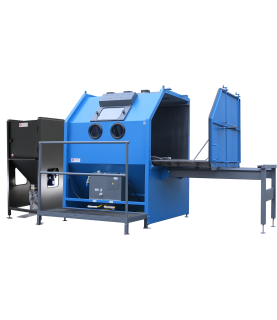

The 1515E bag cabinets are the largest blasting cabinets we offer in standard sizes. With their internal dimensions of 1.5x1.5x1 m, they make it possible to process large one-piece parts while maintaining the characteristics of our baghouses.
On this machine, the abrasive is projected thanks to its pressurized tank. The abrasive is sprayed and then recycled.
This machine from our EXPERT range, designed for intensive use, benefits from 2 cyclones at the rear of the cab, efficient ventilation, and a powerful engine.
Machine equipped with a reinforced loading trolley with turning table (
For more details on the EXPERT range, follow this link
Internal Dimensions (mm) Width x Depth x Height: 1500 x 1500 x 1000
Available sizes in this range (Width in mm): 700,1000 , 1500, 1250,
Applications: sandblasting, bead blasting, airbrushing, pickling, deburring, surface treatment, etc.
PF 1515E
Data sheet
- Cab Range
- EXPERT (DF / PF)
- Cab width
- 1500 mm
- Cabin interior dimensions (mm)
- 1500 W x 1465 D x 1040 H
- Max size of workpieces that can be handled (mm)
- 1060 W x 1265 D x 890 H
- Maximum load
- 500 kg
- Frequency of use
- Intensive
- Abrasive Processing
- With recycling system
- Abrasive Spraying
- Overpressure
- Cabin type
- Cab made of reinforced sheet metal with hoops and lifting rings
- Nozzle material
- Boron carbide (~750h of use)
- Yield / Blasting Speed
- 300-500%
- Air/Abrasive Mix Adjustment
- Per dosing washer
- Ventilation rate
- Broadband
- Suction turbine power
- 1500 W (210 m3/h)
- Number of ventilation modules
- 3
- Cyclone dust and abrasive separation modules
- Yes
- Cyclone Dust Separation Module
- Yes
- Filter cleaning
- Sequential pneumatic pressure adjustment
- Blower
- Foot control
- Sleeves and gloves
- High-strength latex
- Anti-abrasion rubber curtains
- Inclusive
- Retention sieves for large impurities
- Inclusive
- Electrical power
- 1700 W
- Noise level (excluding sandblasting)
- 74 dB
- Curb weight
- 620 kg
- Place of manufacture
- 100% in our workshop in the North of France
Specific References
You might also like
The 1515E bag cabinets are the largest blasting cabinets we offer in standard sizes. With their internal dimensions of 1.5x1.5x1 m, they make it possible to process large one-piece parts while maintaining the characteristics of our baghouses.
On this machine, the abrasive is projected thanks to its pressurized tank. The abrasive is sprayed and then recycled.
This machine from our EXPERT range, designed for intensive use, benefits from 2 cyclones at the rear of the cab, efficient ventilation, and a powerful engine.
Machine equipped with a reinforced loading trolley with turning table (CHAR3) and additionnal dust collector (DPE 750)
(Price: contact us)
